- Product Introduction
TOPLINK MR313 is a compact LTE Cat-4 indoor CPE router designed for stable 4G wireless broadband in homes,offices,and temote locations.
with peak download speeds of up to 150 Mbps aand support for up to 32 Wi-Fi users,it delivers seamless LTE FDD/TDD connectivity,with fallback to 3G and 2G networks.
Equipped with 300 Mbps Wi-Fi,advanced network security,and remote management via SMS and FOT,the MR313 is an ideal solution for home broadband,SMB internet,and IoT gateway applicayions.

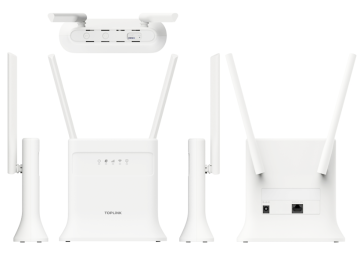

- ID Reference
- Technical Parameters
| Chipset | ASR1803S | |
| Dimension | 147.7*130*24.8 mm | |
| WIFI Chipset | 8192es, 802.11 b/g/n 150Mbps, 2.4G WIFI 2*2 MIMO | |
| Bands | LTE: B1, 3, 5, 7, 20, 38, 40, 41
WCDMA: B1, b5 |
|
| Battery | None | |
| WIFI User | Max 32 | |
| Hardware | Port | 1Wan/Lan |
| Display | LED | |
| Antenna | 4G Antenna*2 ; WIFI Antenna 2*2 | |
| Button | POWER, Reset, WPS | |
| Software | UI | Web UI |
| Update | Local | |
| ESIM | Support | |
