- Product Introduction
HW303 is a highly advanced LTE indoor multi-function product which is specifically designed to meet the needs of integrated data and 802.11b/g/n Wi-Fi access for household, business and industrial users. The product supports W/LAN networking and Wi-Fi AP. It supports wide signal coverage, provides high data throughput and flexible network capability to customers who need broadband access and Wi-Fi hot-spot.

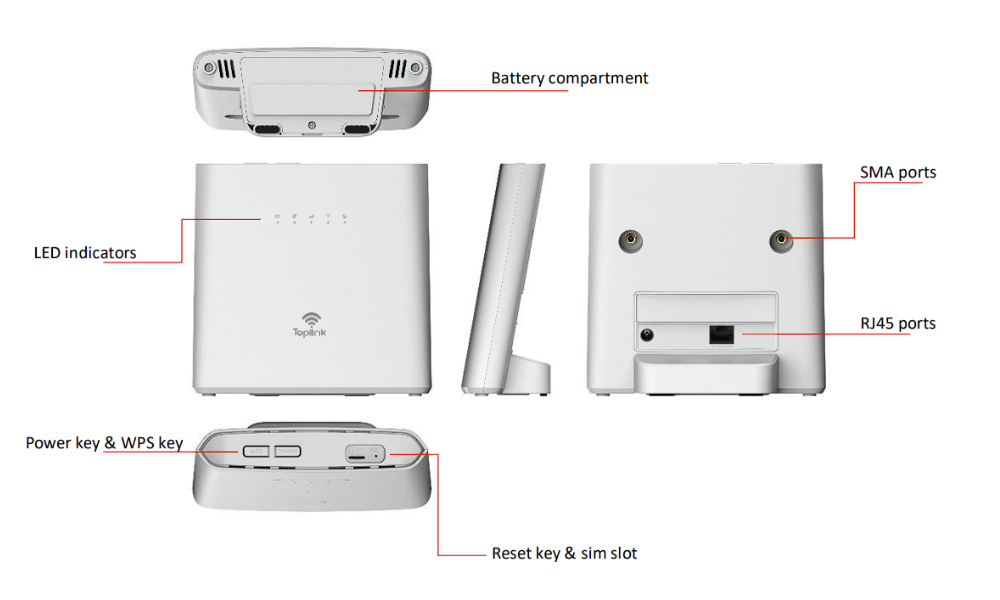

- ID Reference
- Technical Parameters
| Chipset | ASL1803S | |
| Dimension | 143.77*53.6*144.34 mm | |
| WIFI Chipset | RTL8192ES 802.11b/g/n 40MHz 2*2 MIMO | |
| Bands | LTE: B1, 3, 5, 7, 20, 38, 40, 41
WCDMA: B1, b5 |
|
| Battery | Standard Li-ion Battery 4000mAh | |
| WIFI User | Max 32 | |
| Hardware | Port | 1Wan/Lan |
| Display | LED | |
| Antenna | 4G Antenna*2 ; WIFI Antenna 2*2 | |
| Button | POWER, Reset, WPS | |
| Software | UI | Web UI |
| Update | Local | |
| ESIM | Not Support | |
